Kanga mini Loader Atachments

4/1 Bucket

Post Hole Digger

Augur Sizes: 150mm, 225mm, 300mm, 450mm, 600mm

Trencher

Rotary hoe

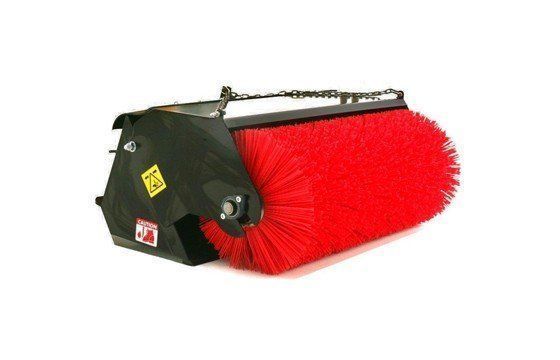

Road Broom

Ripper

Angle Back fill Blade

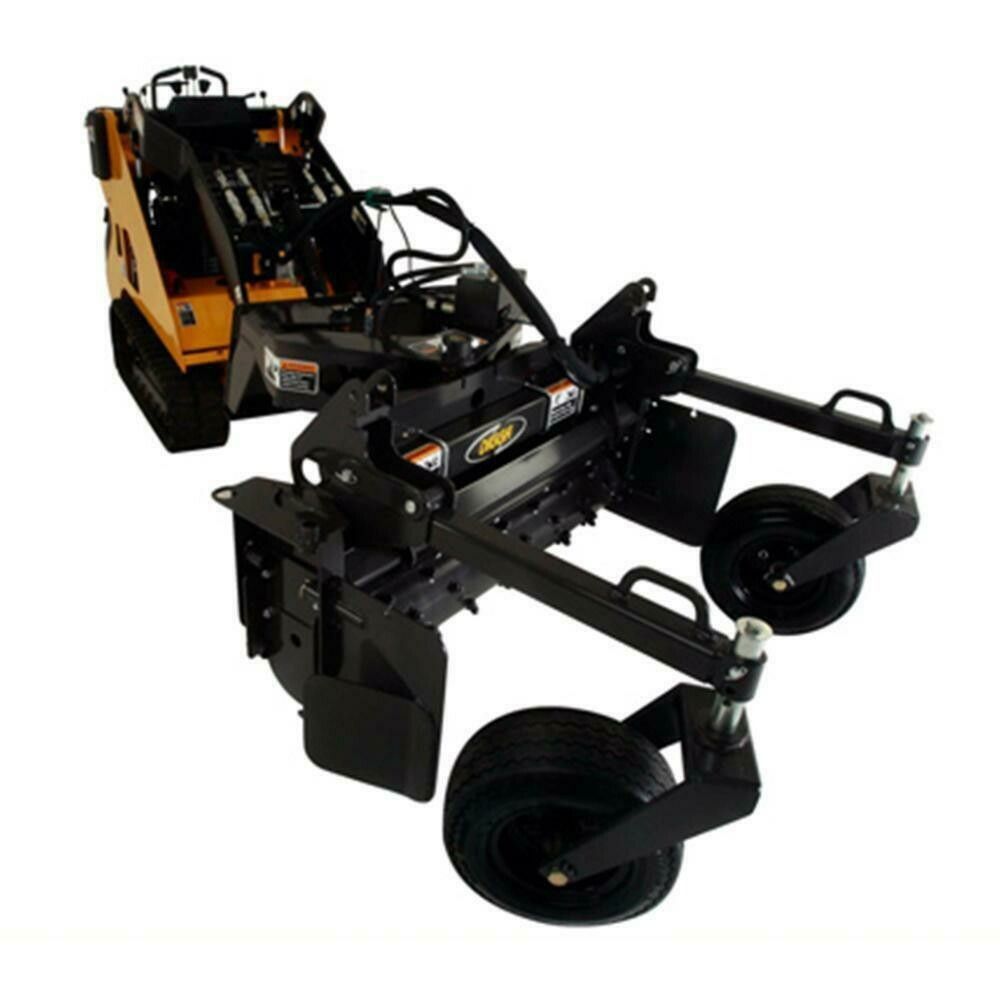

Digga Power Rake

Connecting atachments

Turn off the Kanga, wiggle back and forth levers located on top of the Kanga Loader to release the hydraulic pressure from the joiners. You should be able to push the poppets in on both male and female joiners with your finger. Machine is now ready to be connected to a atachment.

The attachments have the same joiners to match the kanga's. Please note that the sun and heat can increase pressure in the line as the oil heats up and expands, so you will need to release the pressure on the attachment as well. To do this you don't have a lever to wiggle, so you must release the pressure by pushing the ends of the hoses to open the poppets. Warning, oil will spray out so put a rag over fitting. The female fitting will require a pin to reach the poppet inside, being careful not to damage the tips.

Connecting the joiners by simply pulling back the outer sleeve on the female fitting and inserting the opposing hydraulic line with the male fitting into it. The snap ring should return to it's rest position and the lines should not be able to be pulled apart, repeat for the second set in opposite direction.

Disconnecting hydraulic lines - turn off Kanga, wiggle levers to release pressure, pull back the outer sleeve on the female fitting releasing the male fitting.

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Jackhammer

5 September 2024
Description: The Hitachi H65SB2 jackhammer, It is the most popular Jackhammer in its 16kg class as it posses a massive 42 joules of power and a strong 1400w motor. Features: Strongest demolition power and durability in this class Low noise and vibration level Triple dust sealed, double insulated design Comfortable shock absorbing handles Robust construction for longer life High impact energy: 42 joules Strong alloy motor housing Specifications: Chuck 30mm Hex Length 726mm Weight 16.5kg Impact Rate 1400bpm Brush 999086 Power Input 1400 watts

Hydraulic Bearing Puller

5 September 2024
hydraulic bearing puller set complete with bearing separator, main rods, extension rods, twin/triple head, beam and legs to build 4, 6, 8 two and three leg hydraulic pullers. Ideally suitable for industrial, automotive, agricultural and marine applications and for general maintenance Separator capacity 75-105mm 10-tonne hydraulic ram

Hot/Cold Drink Dispenser

5 September 2024
Stainless steal thermos like unit designed to keep cold things cold and hot things hot Water, Orange juice cold hot water when there is no power around

Hoses, 1", 2" and 4" Lay Flatt

5 September 2024
20m Lay Flat Hose with Instantaneous Couplings Lightweight, flexible construction with high performance & high burst specification A high pressure Type 2 fire hose with elastomeric coating and EPDM rubber lining Outer coating provides increased protection against the absorption of liquids and improved resistance to abrasion Meets the requirements of BS 6391 (1983) for Type 1 and Type 2 hoses Hose burst pressure 50 bar, hose and coupling working pressure 15 bar maximum No drying required, quick and compact to stow Complete with male & female light alloy instantaneous cam lock couplings Please note that we try our best to ensure quality hoses, however hoses are used on comercial site that sastain abuse and there fore can have small leakes. Please advise if leakage posses a problem.

High Pressure Water Cleaner

5 September 2024
S tore / Builders Equipment / Cleaning High Pressure Water Cleaner AU$0.00 In stock COMMERCIAL � COLD WATER ELECTRIC HIGH PRESSURE CLEANERS High Pressure Water Cleaners are specifically designed to solve all problems relating to washing, degreasing, descaling and disinfecting in a wide range of commercial and industrial situations. Their main applications are in the cleaning, building, transport, manufacturing and primary industries. SPECIFICATIONS Flow Rate l/h-l/m 600-10 Working Pressure bar-psi 120-1800 Inlet Temperature °C Max 60 Weight kg 33 Dimensions LxWxH mm 620x390x660 Pump Electric Motor hp-kW-Amp 3-2.2-13 Volts 220/240 1Phase

Hepa Vac

5 September 2024
Dust & Slurry Management Husqvarna S 13 S 13 is a quiet-operating single-phase HEPA dust collector to match the power cutter Husqvarna K 3000, hand held grinders, small grinders 5-7”, small scarifiers and drywall sanders. This professional dust extractor is an all-around construction vacuum for picking-up a wide range of building materials and debris. Equipped with a tested and certified HEPA H13 filter. Features include Jet Pulse pre-filter cleaning and vacuum meter for filter control. The non-marking wheels are puncture free and lock at the front. The Longopac® bag hose system ensures simple, dust-free bag changes. Phases 1~ Air Flow, CFM 129 cfm Rated input power 1.6 hp Weight 66 lbs 3 Stage filtering with certified HEPA H13 filter Quiet operation Durable design for years of reliable service Non-marking wheels Great for building materials and debris

HEPA Dust Extractor

5 September 2024
S 13 is a quiet-operating single-phase HEPA dust collector to match the power cutter Husqvarna K 3000,

Helium Balloon Tank Kits

5 September 2024
50 Helium Tank, Disposable A disposable helium-filled tank with enough helium for approximately 50 x 9" balloons. Balloons are not included with this pack. Purchase your balloons separately and enjoy the freedom to mix and match balloon colors, shapes and styles for custom decorations. Gives party planners the convenience of a portable, disposable helium-filled tank with an easy-fill nozzle. If you chose to purchase additional 11" balloons this tank will fill 27 x 11" balloons. Latex balloon float time is approximately 5-7 hours. Foil balloon float time is approximately 4 days.

Hedge Trimmer

5 September 2024
Maruyama HT230DLS-R Hedge Trimmer Light weight, high blade speed, designed for the commercial operator DISPLACEMENT 22.5 cc OUTPUT 1 kW DRY WEIGHT 5.4 kg

Heatlie Warming Oven

5 September 2024
Gas heated 12 shelf food warmer comes with a 9 kg gas bottle the food can be prepared and remain hot till needed 12 rack capacity (6 supplied with item). Dimensions: 1370H x 540D x 680W. Shelves are 610mm x 430mm. Weight: 98kg Gas Consumption: 13 mjph Features This model uses LPG (bottled) gas Maximum temp: 160C Energy efficient with the Heatlie Ribbon Burner System. Removable burner assembly housed in stainless steel slide-in unit can be taken out to assist in cleaning. Removable side rails and shelves for ease of cleaning. Front skid base ensures legs don’t dig into the ground, so the unit stays level. Rear wheels for mobility Handle rails on back to manoeuvre unit Auto push button piezo ignition for easy starting Flame failure protection device which cuts off gas supply if flame is extinguished accidentally Thermostatically controlled, with adjustable control knob. Shelves have a rail at the rear to prevent food from falling backwards. Hose and regulator on front control panel can be secured for traveling. Flush lock handle, to prevent damage during transportation Comes fully assembled and ready to use.
